Basic Distance Measurement:
- What it does: Instantly measures straight-line distances from the laser position level to any surface the laser dot can reach.
- How it’s used: Place the laser position level against one wall, aim the laser dot at the opposite wall, and press a button. The length of the room is displayed instantly. This is invaluable for quick room dimensions, checking material lengths, or verifying clearances
Layout (Projection) and Preset Value Measurement:
- Layout (Projection): Using the stable laser line as a reference, you can quickly mark multiple points at equal heights or alignments (e.g., for cabinet mounting, tile starts, or electrical outlets) by measuring along the beam.
- Preset Value / Deviation Measurement: You input a « benchmark » or desired distance into the tool. Then, you measure an installed door. Instead of showing a raw distance, the tool displays the deviation (e.g., « +0.5 in » or « -0.25 in »). This allows for lightning-fast quality control checks against a specification across multiple items.

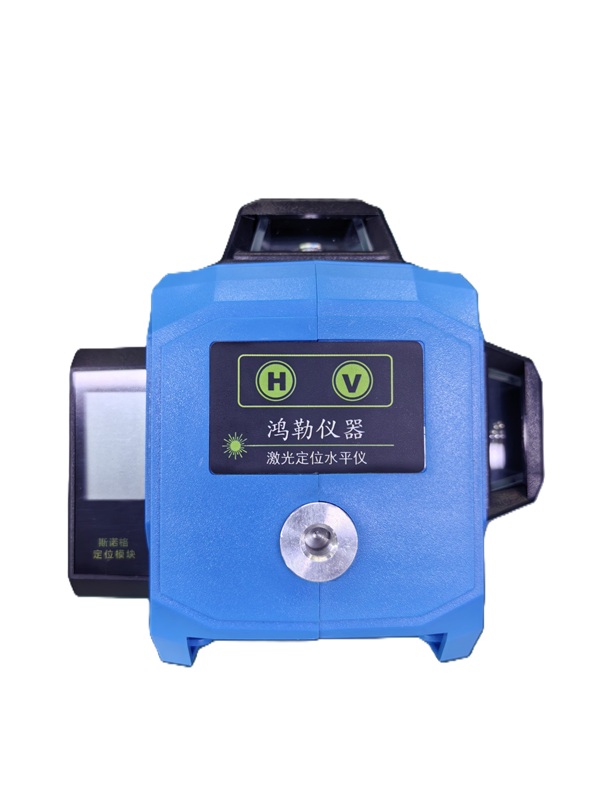

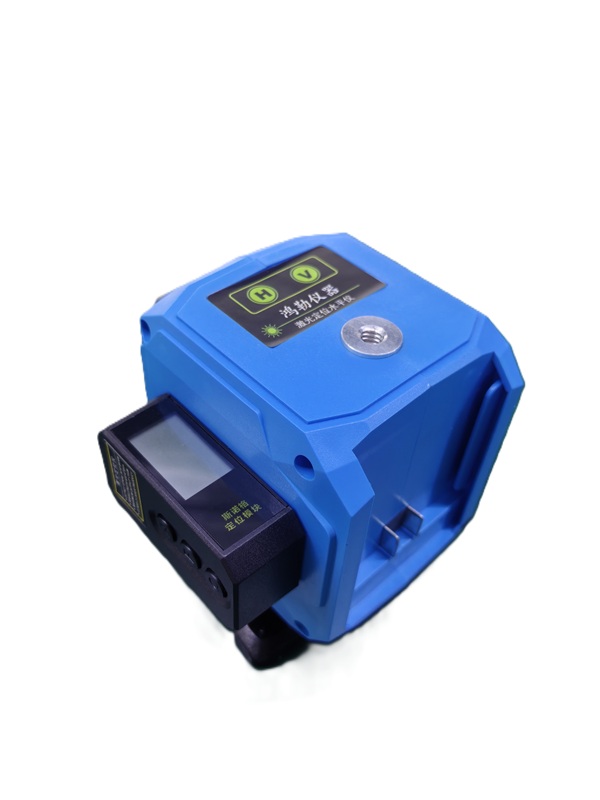

DL-04 Laser Position Level
|
Laser Level Module
|
| Laser line type |
3D/ 12 lines |
| Wave length |
520nm |
| Laser class |
Class 2 |
| Accuracy: |
±1 mm @ 7 m |
| Auto-Leveling range |
±3° |
| Self-leveling time |
＜5s |
| Tilt alarm |
Yes |
|
Laser Meter Module
|
| Measuring Range |
0.05~40m |
| Measuring Accuracy |
± ( 2mm +5×10-5 Dmm) |
| Laser class |
Class 2 |
| Selection of measurement benchmark |
Front vertical line/ bottom horizontal line |
| Single measurement |
Yes |
| Continuous measurement |
Yes |
| Measurement unit |
m |
| Layout and preset value distance measurement |
Yes |
| Type of battery |
Lithium battery 3.7V 3000mAh |
| Laser class |
Class 2 |
| Wave length |
650nm |
| Operating temperature |
-5~40℃ |
| Storage temperature |
-20~60℃ |
| Protection class |
IP54 |
The Laser Position Level revolutionized construction, woodworking, and interior design by projecting perfectly straight, level, eliminating the guesswork of chalk lines and spirit levels. It is a complete layout and verification system.
Applications of Laser Position Level
- Drywall & Ceiling Grid Installation: Rapidly establish level perimeter lines and measure precise locations for T-bar intersections or light fixtures.
- Cabinet & Shelving Installation: Ensure a perfectly level mounting line for an entire kitchen’s worth of cabinets and quickly mark stud locations at consistent intervals.
- Landscaping & Deck Building: Establish level grades over long distances and precisely measure post placements.
- HVAC & Electrical: Layout duct runs, conduit, and outlet boxes with perfect alignment and spacing from architectural features.
- Professional Tiling: Create a perfect level baseline and measure for precise cuts at the edges of a room without constant manual measurement.
Description
Stadia Measurement (Height Tracking / Continuous Measure)
- While the leveling laser projects a stable horizontal or vertical line, the distance meter module is used to take measurements along that line.
- How it works: Imagine you need to find a point exactly 120 inches (or 3 meters) from a wall along a level horizontal line. You first set up the laser level to project a level line. Then, using the LDM, you walk along the beam. The LDM displays the live, changing distance to the laser position level. You stop precisely when it reads « 120 inches. » You’ve just found that exact point without a tape measure, completely alone.
